Specifications of MAZDA R360 Coupe


Return to R360 Coupe Page

--KRBB:With 4-speed manual gear transmission
--KRBC:With 2-speed torque converter automatic transmission(is given in Parentheses)

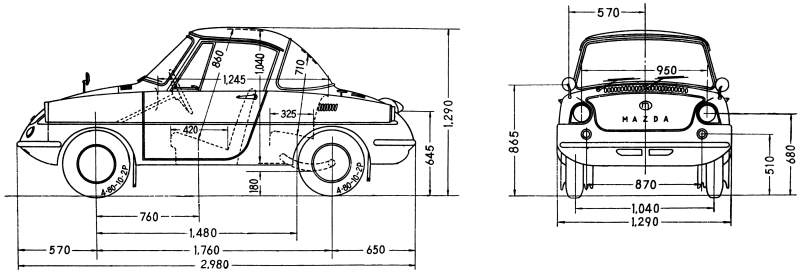

MEASUREMENTS:

_Overall Length:2,980mm
_Overall Width:1,290mm
_Overall Height:1,290mm
_Wheel Base:1,760mm
_Tread Front:1,040mm
_Tread Rear:1,100mm
_Road Clearance:180mm

CABIN DIMENSIONS:
_Inside Length:1,245mm
_Inside Width:1,050mm
_Inside Height:1,040mm

CAR WEIGHT:380kg

PERFORMANCE:
_Maximum Speed:95km/h (85km/h)
_Min.Turning Radius:4.0m
_Fuel Consumption(with two passengers):32km/l (25km/l)
_Braking Distance:13m(50km/h)

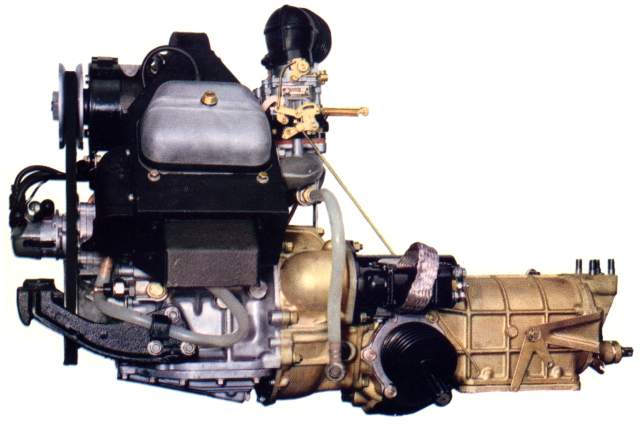

ENGINE:

_Type:Forced Air-cooled,2-Cylinder,4-Cycle,90degree V
_Bore * Stroke:60mm * 63mm
_Piston Displacement:356cc
_Compression Ratio:8.0
_Max.Brake Horsepower:16ps/5300rpm
_Maximum Torque:2.2kg.m/4000rpm

TANK CAPACITY:
_Gasoline:16 liter
_Oil:2.8 liter

DRIVING SYSTEM:
_Clutch:Single Dry Plate (No Clutch)
_Transmission:Synchromesh & Gear Sliding (Torque Converter)
_Reduction Gear:Spiral Bevel
_Reduction Gear Ratio:6.33

STEERING SYSTEM:Rack Pinion

TIRE SIZE:
_Front:4.80-10-2P,ELP
_Rear:4.80-10-2P,ELP

SUSPENTION SYSTEM:
_Suspention:Four Wheel Independent
_Type of Spring:Torsion Rubber
_Shock Absorber:Cylindrical Oil Damper

BRAKE SYSTEM:
_Foot Brake:Hydraulic Internal Expanding Four Wheel
_Hand Brake:Mechanical Internal Expanding Rear Wheel

BODY:Unitary Construction

FRAME:Frameless
